Installation

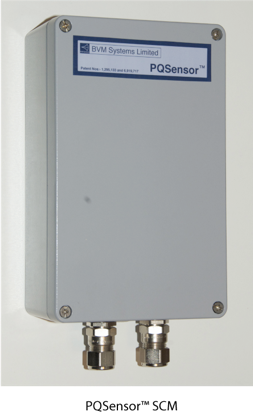

One PQSensor™ is installed on each single phase CVT. The PQSensor™ consists of two components - a Measurement Unit that is installed in the secondary terminal b

ox of each CVT and a Signal Conditioning Module (SCM) that is mounted on the structure of the CVT. The SCM is connected to the measurement unit housed in the secondary terminal box using a cable that is supplied with the PQSensor™.

An ac or dc supply is required by the SCM and the output signal (nominal 63.5Vac) is wired to the location of the measurement equipment which is normally in the protection or metering room.

Often it is convenient to wire the SCM to the local CVT marshalling box with a multicore cable. The marshalling box can provide the supply voltage for the SCM and be a convenient location where the signals from all three phases can be collected and conveniently wired back to the measurement location. The PQSensor™ can also be powered by the CVT phase to phase output voltage as it presents a small burden - less than 5VA.

Sample wiring drawings are available in the Downloads section of this website.

Field Experience

The product has many years of field experience at voltages from 115kV to 400kV - the PQSensor™ is applicable at any voltage where CVTs are installed. PQSensor’s™ have been field retrofitted to a variety of different designs of CVT and have also been supplied ‘factory fitted’ by all of the major manufacturers of CVTs. Applications have included power quality recording, fault and disturbance recording and monitoring of high speed transients on transmission systems. The PQSensor™ has been used to accurately measure power quality parameters such as harmonics and flicker over a wide bandwidth from subsynchronous harmonics to high frequencies.

© Copyright 2010    BVM Systems Limited    All rights reserved

General Description

The PQSensor™ is a factory or field installable transducer that equips a CVT with an output signal that faithfully reproduces the harmonic spectrum of the primary h.v. input. This output enables CVTs be used with any power quality monitoring device to accurately record power system harmonics and transients. The installation of the PQSensor™ on a CVT does not in any way affect the normal operation of the CVT.

Introduction

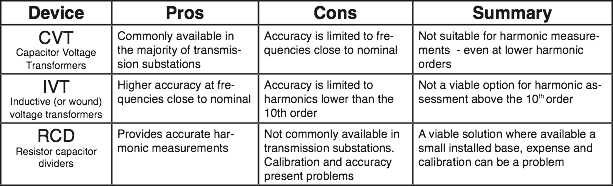

To make accurate measurements of harmonics and other power quality phenomena in a transmission substation the number one requirement is to have access to a voltage signal that faithfully reflects the full harmonic spectrum of the primary system voltage. The three most common sources of voltage signals in a transmission substation are listed in the table below and the benefits and limitations of each is considered.

It is evident from this summary that none of the above sources meet the requirement of providing a readily available voltage signal suitable for accurate harmonic measurement  in a cost effective manner.

The PQSensor™ is a transducer that can be fitted to an existing in service CVT, or supplied factory fitted with new CVTs and provides an output signal that meets this requirement.
